| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | OCSTAT |
| Certification: | CE, RoHS |
| Numéro de modèle: | S2401RF |
| Quantité de commande min: | 1 pièce |
| Prix: | Négociable |
| Détails d'emballage: | Cartonné |
| Délai de livraison: | 7-50 jours ouvrables |
| Conditions de paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 50000 PCs/mois |
| Type de contrôle: | thermostat numérique de pièce | Matériel: | ABS |
|---|---|---|---|
| Couleur: | Blanc/adapté aux besoins du client | Capteur: | Capteur Ntc |
| Programmabilité: | Non programmable | Relais: | OMRON |
| Source d'énergie: | Batterie de taille de 2 D.C.A. | Caractéristique: | économisez l'énergie |
| Rétroéclairage: | Blanc/bleu | ||
| Mettre en évidence: | wireless thermostat for boilers,heating control wireless thermostat,wireless room thermostat with warranty |
||

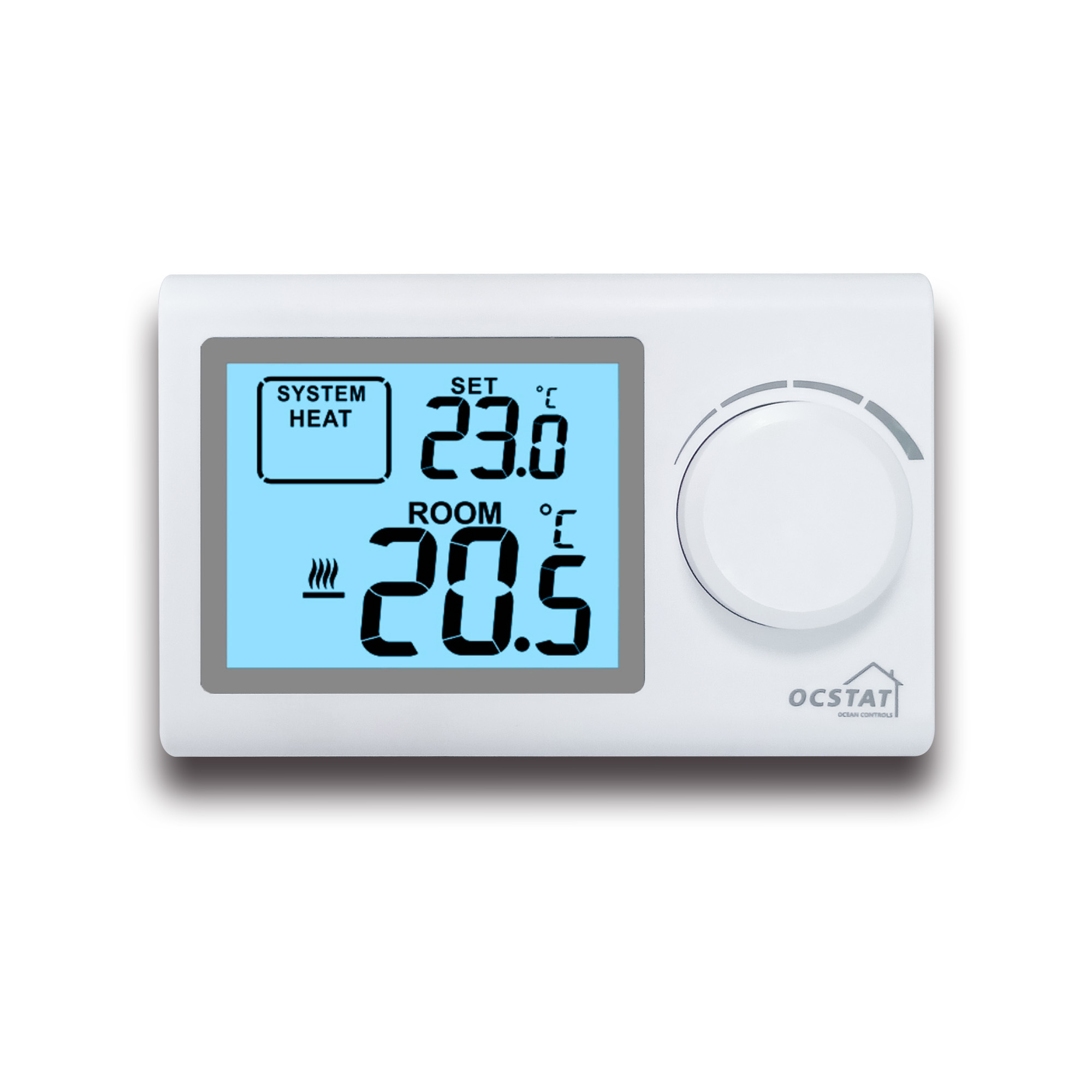

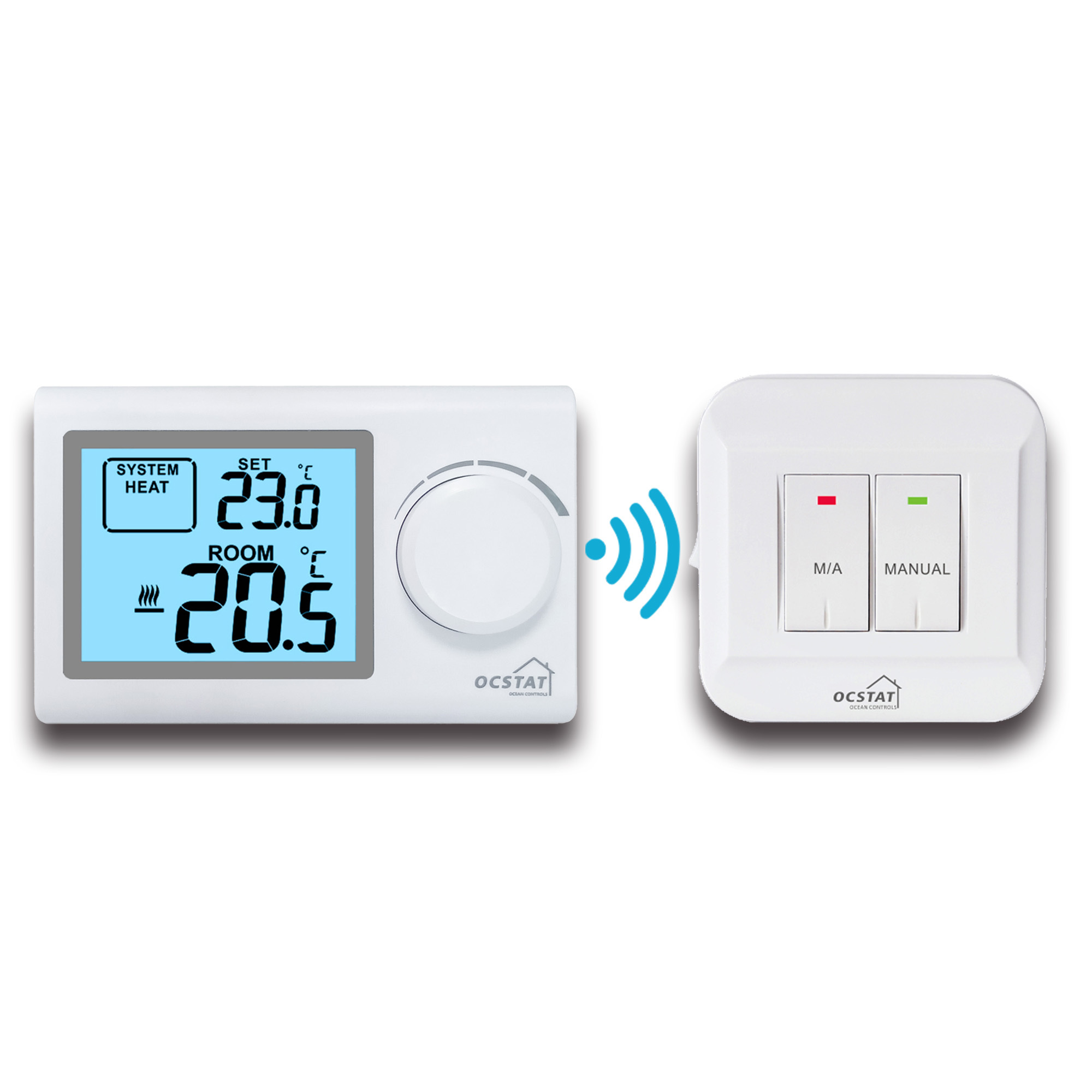

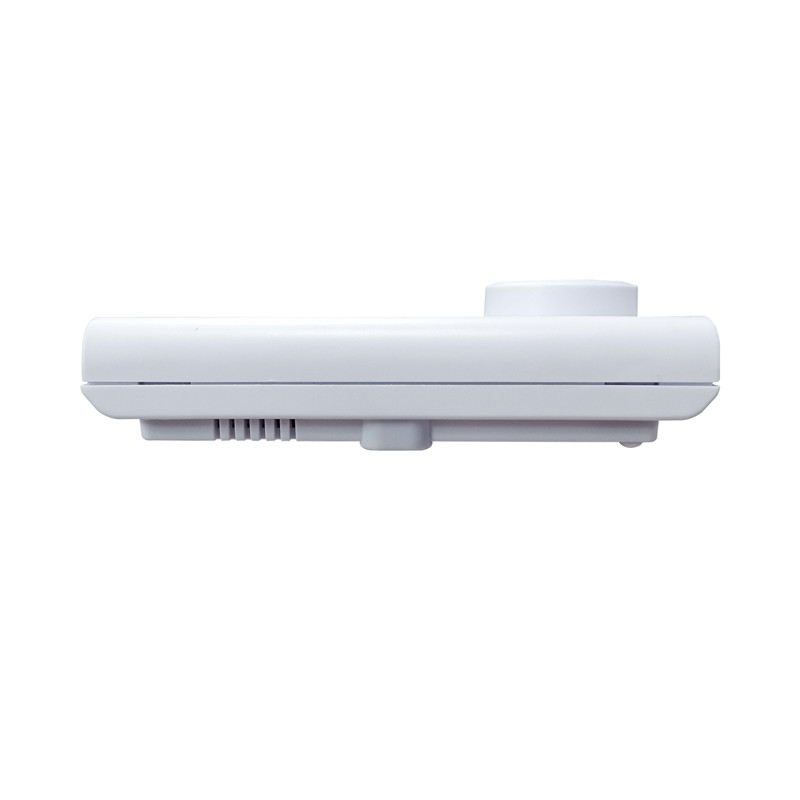

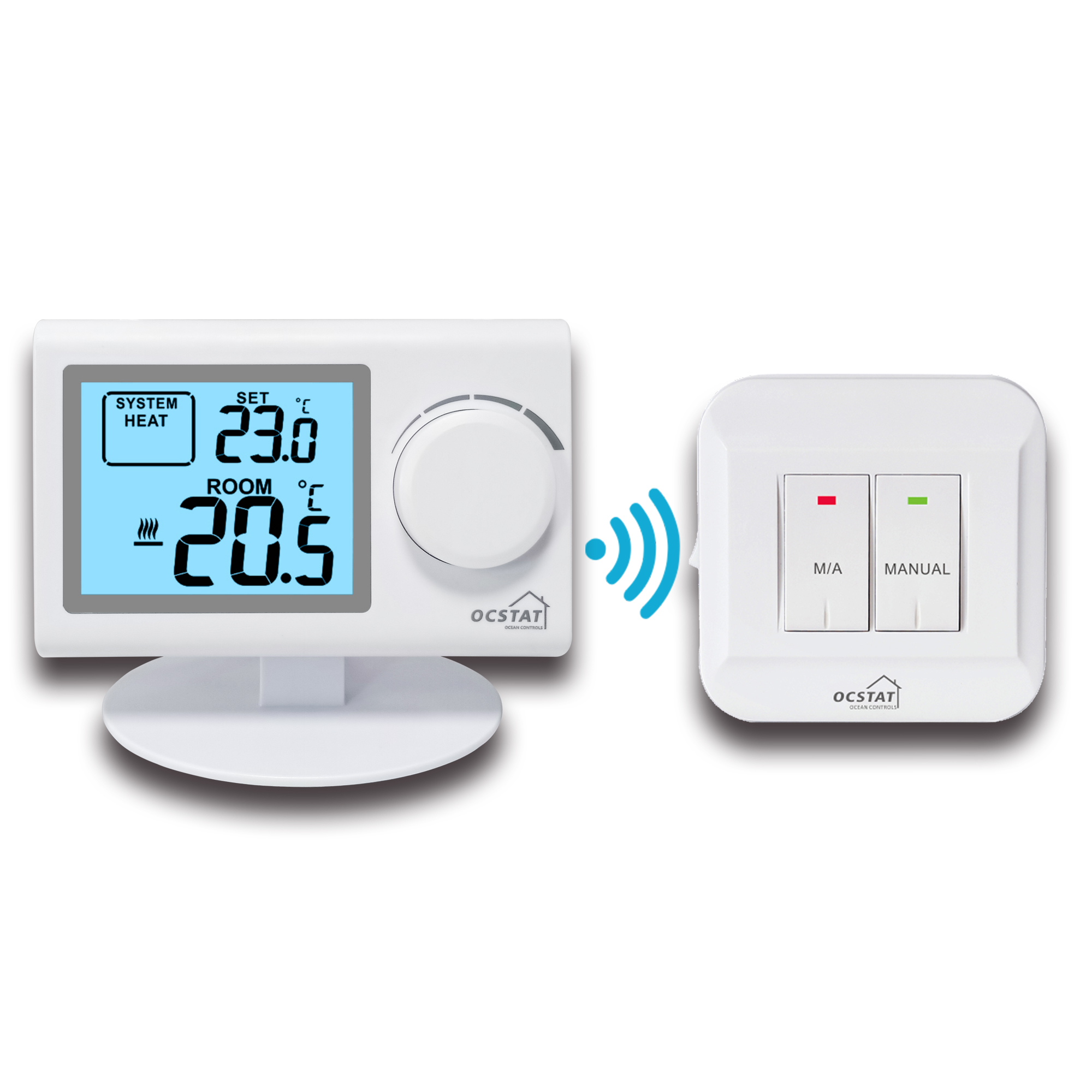

Heating Control Wireless Thermostat For Boilers
Features:
Product Specifications:
Transmitter:
| Model No.: | ST2401RF |
| Switchable Voltage: | 24 V AC / DC,...250 V AC; 50 Hz |
| Switchable Current: | 6 A (2 A inductive load) |
| Programmability: | Non- Programmable |
| Temperature Range (°C): | 0°C-40°C in 0.1°C |
| Control Temp.Range (°C): | 5°C-35°C in 0.5°C |
| Temp.Meas.Accuracy: | ±1°C (at 20°C) |
| Power Supply: | 230VAC |
| Power Method: | 2 x AAA 1.5V Lithium batteries |
| Dimensions: | 120 x77 x28 mm |
Receiver:
| Switch: | AUTO/MANUAL |
| Power Supply: | 230VAC, 50HZ |
| Operating Frequency: | 868.35MHZ |
| Transmission Distance: | approx. 200m in open terrain |
| Consumption: | 6W |
| Maximum Load: | 6(2)A, 230V |
| Indicator: | LED System |
| Dimensions: | 86 x 86 x 26 mm |
Application:
Underfloor Heating System,
Water Heating/Electric Heating System/Boiler,
Digital Smart Home Thermostat,
Heating digital thermostat,
Gas boiler thermostat
Product Sence:
What We Are Manufacturing?
1. Programmable/Non-programmable thermostat
2. Wireless RF/Wired thermostat
3. Touch Screen/Dail/Push Button thermostat
4. Timer/Programmable/Humidity thermostat
5. Pipe/Cylinder Control
6. Ventilation Control
7. Underfloor Heating Control
8. Heating System Control Center
9.Provide OEM/ODM service to worldwide customer, including manufacturing, design,engineering and tooling.
FAQ:
Q1. Can I place sample order first?
A: Yes. We will quote you different prices for small, medium and large qty. You can order with different prices for different qty.
Q2. How could I pay them?
A: T/T, PayPal and Western Unionare preferred, so just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.
Q3. How to place the order?
A: Please send us your purchase order by email, Trade Manager or Skypeor you can ask us to send you a Performa Invoice for your order.
Q4. How long can I get my order?
A: For samples, we will finish production within 3-4 working days. For bulk orders, usually 25 working daysand also depend on your design.
Q5. Can you customize according to our designs and put our logo on the products?
A: Yes, we support both standard and customized productsand can put your logo on the products. Our experienced R&D team will support technical questions.
